Automatic Assembly Machine
Double Steel wire hose clamp assembly machine

Double Steel wire hose clamp assembly machine

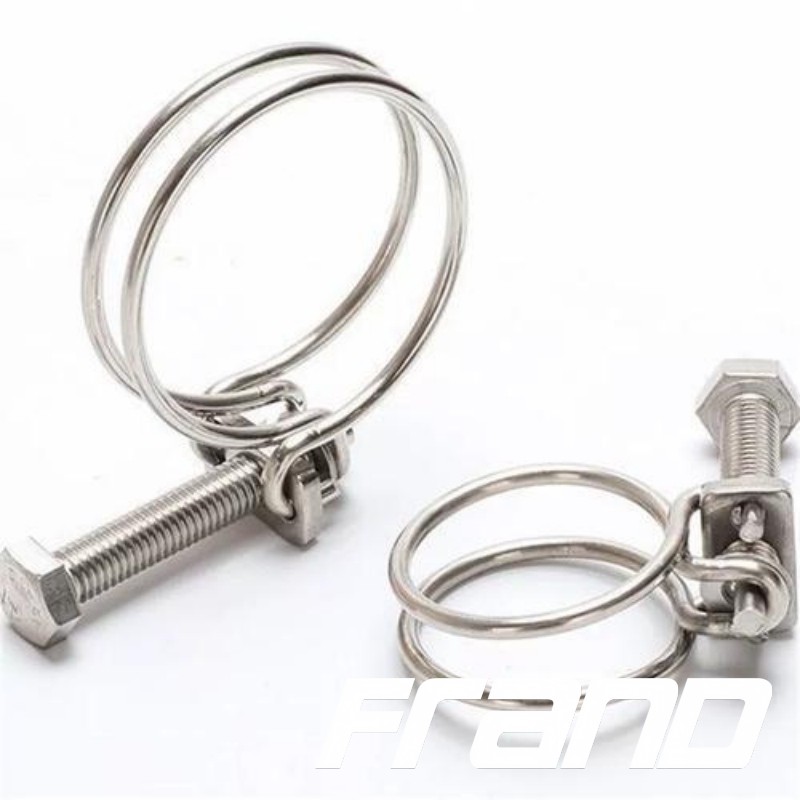

The steel wire clamp is a ring-shaped clamp surrounded by two steel wires. The clamp has the characteristics of beautiful appearance, convenient use, strong clamping force and good sealing performance.

  • Product Origin :

    china
  • Efficiency :

    1100pcs/hour
  • delivery_port :

    FOB
  • delivery_date :

    3-5 working days
  • qty :

    5000
  • Shipping Port :

    1 Set
  • weigh :

    500kg
  • Packing :

    Wooden Box

Steel wire clamp assembly machine

The equipment uses a vibrating plate to process square nuts, circular gaskets, and screws, and then manually puts the steel wires into the tooling. The robot automatically grabs the steel wires, square nuts, circular gaskets, and screws to form a finished product, and finally the machine outputs the product.

•  SPECIFICATION

Product name Steel wire clamp assembly machine
Size 1200mm(length)*1200mm(width)*1700mm(height)
Weight 0.5Ton
Working area 2000mm(length)*2600mm(width)
Strength AC220v,50HZ
Pressure 0.5Mpa-0.7Mpa(72.5-101.5PSI)
Efficiency 1100pcs/hour
Service one year
Power 2.5kw



•   WORKFLOW
